WL-DPD200MA

200 MHz InGaAs Low Noise Photodetector with DC Coupling


 LEAD TIME: 4 WEEKS

The DPD200MA is a DC-coupled high-speed dual-balanced InGaAs photoreceiver. It features a high transimpedance gain, very low noise and a -3 dB bandwidth of 250 MHz (flat to 200 MHz).

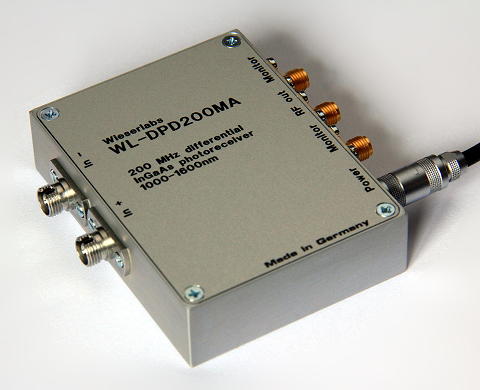

The DPD200MA comes in a rugged aluminum case with two FC fiber receptables and a 50 Ω coupled SMA output. It operates from a single 11-15 V DC supply. It also features two SMA monitor outputs that reflect the optical power on each photo diode.

OEM versions without a case are available upon request.



Features

  • Bandwidth: flat to 200 MHz (-3 dB at 250 MHz)
  • High transimpedance gain: 7500 V/W (1550 nm) into 50 Ω (15000 V/W into high impedance inputs)
  • NEP 7 pW/sqrt(Hz) (at 1550 nm, 0-100 MHz)
  • Wavelength range: 1000 nm to 1700 nm
  • 11-15 V single supply
  • Input: FC fiber receptables
  • Output: SMA, 50 Ω coupling
  • Two SMA monitor outputs
  • Damage threshold: >15 mW

Typical Applications

  • Interferometry
  • Optical Coherence Tomography (OCT)
  • LIDAR
  • Single-ended use also possible
